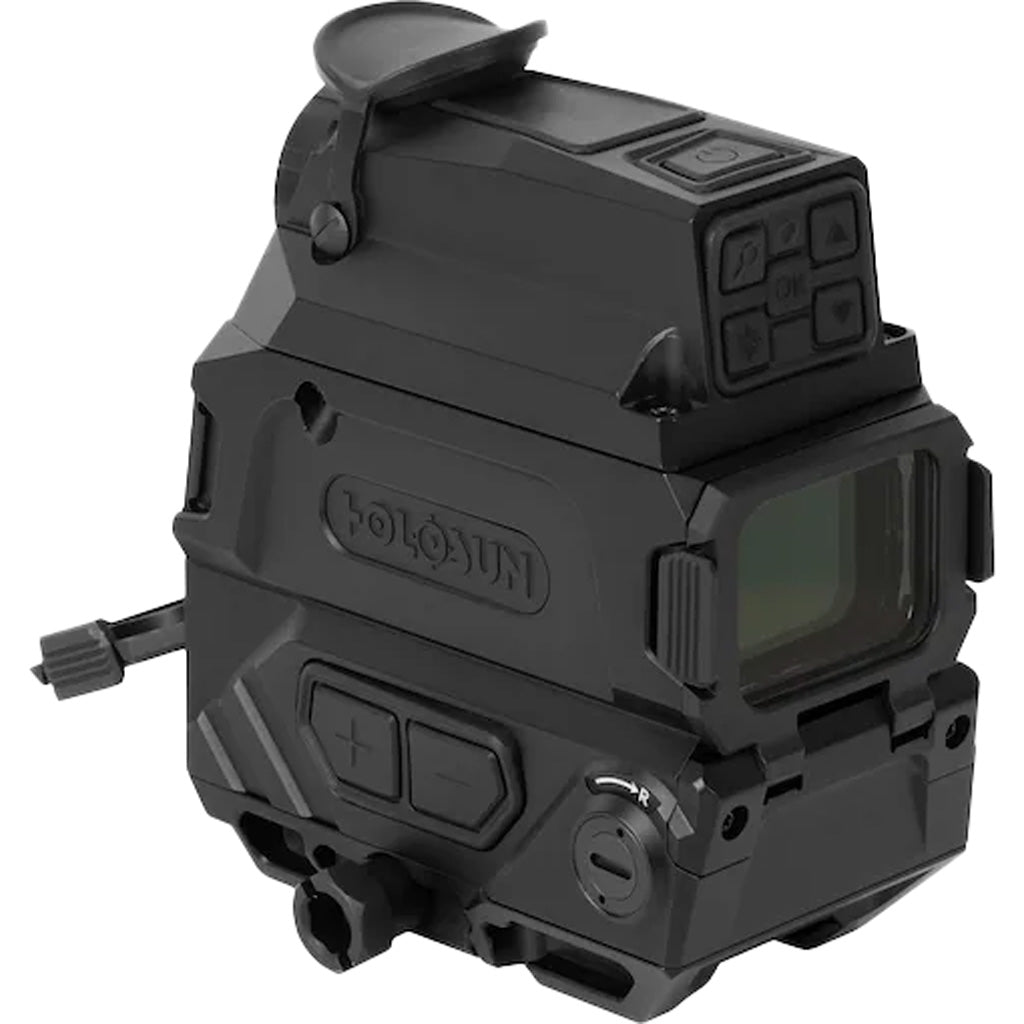

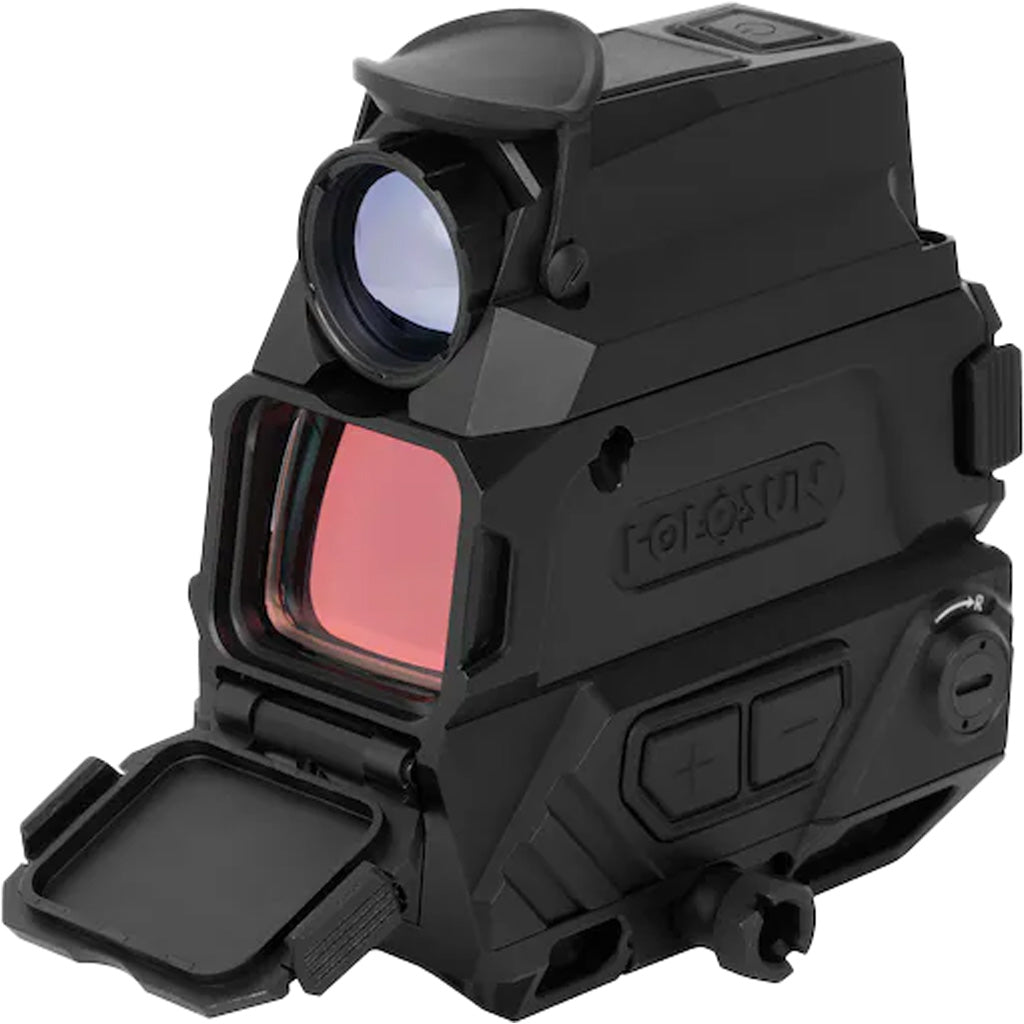

Holosun Digitial Thermal Reflex Sight Red Multi-Reticle

The Holosun DRS-TH is a digital reflex sight that combines a conventional red dot sight with an integrated thermal imaging system. The thermal overlay lets the user detect heat signatures while retaining a familiar red dot aiming system, and selectable thermal modes and digital zoom provide flexibility as viewing conditions change. Integrated video recording allows thermal footage to be captured directly through the optic, while the enclosed 7075-T6 aluminum housing is built for demanding field use.

Features

• 1028 x 768 display resolution at 50 fps for clear visibility
• 256 x 192 thermal sensor for detailed night vision
• Up to 8x digital magnification for distant targets
• Onboard storage for photo and video capture
• Multiple reticle options for user preference
• Various brightness and thermal imaging palettes
• 20 hours of battery life on two 18350 batteries
• IP67 waterproof rating for all-weather use
• In the box: Holosun DRS-TH Thermal Reflex Sight, batteries, multi-tool, and cleaning cloth
• Red Multi-Reticle System with 2 MOA dot, 65 MOA circle, or combined circle-dot reticle, 650 nm wavelength
• 256 x 192 thermal sensor, 1024 x 768 OLED display, 50 FPS refresh rate, less than 50 mK MRTD
• Thermal image modes: White Hot, Black Hot, Outline, and Highlight
• digital zoom: 1x, 3x, and 5x
• Thermal lens focus: 25 mm
• F1.1 aperture
• 5 m to infinity focus range
• 7.2 degree x 5.3 degree field of view
• 8-14 um spectral range
• Internal video recording
• 2x 18350 rechargeable batteries
• up to 10 hours observation mode or 8 hours full-function mode
• Magnetic USB charging and data connection
• Shake Awake
• Memory Mode
• 8 daylight and 4 night-vision brightness settings
• 1x magnification, parallax-free, unlimited eye relief, multi-coated optics
• 1.25" x 0.98" window size
• 3.7" x 2.2" x 3.5" body dimensions
• 18 oz. body weight
• 1.72" central mount height
• 2.3 oz. mount weight
• 0.5 MOA adjustment per click, +/-50 MOA windage and elevation travel
• 7075-T6 aluminum housing, anodized finish, black
• IP67 waterproof
• 1000G vibration resistance
• -20 degrees C to 50 degrees C working temperature
• Includes: 2x 18350 rechargeable batteries, USB-A to magnetic charging and data cable, lens cloth, multi-tool, wrench, manual, and warranty card
• Fitment: Picatinny direct mount

Details

• Brand: Holosun
• Manufacturer Part Number: DRS-TH
• Color: Black / Red
• Dimensions (L x W x H): 9.25 x 6.75 x 4.75 in
• Weight: 2.85 lb
• UPC: 810047072942
