Wichard Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"

Webbing Eye Strap - 5mm Diameter - 13/64" - 86mm Spacing - 3-25/64"

Features:

• Drop-forged webbing eye straps with high-quality stainless steel (316L)
• Outstanding strength
• Specific use for webbing

Applications:

• The perfect solution to attach webbing

Specifications:

• Materials: 316L stainless steel grade
• Weight: (lb) 0.04 / (g) 18

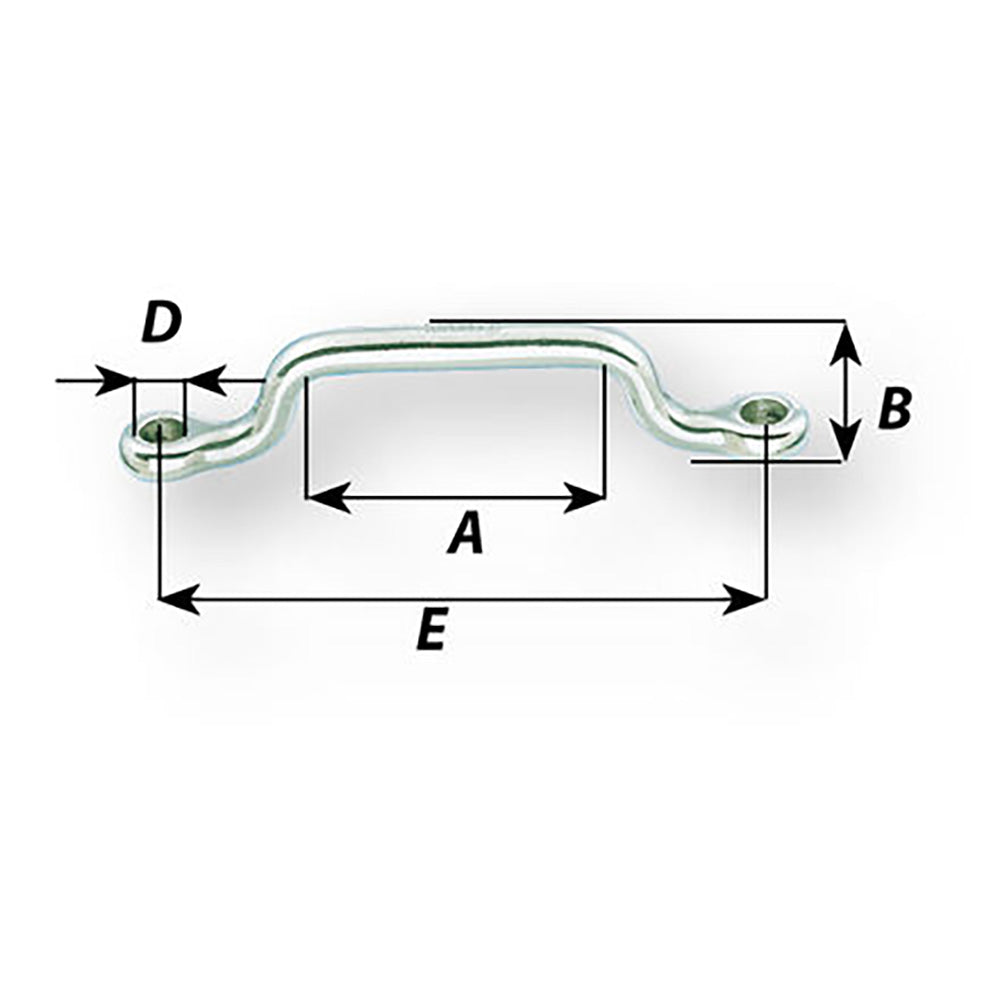

Dimensions:

• A: (inch) 1 31/32" / (mm) 50
• B: (inch) 15/32" / (mm) 12
• D diameter: (inch) 13/64" / (mm) 5
• E: (inch) 3 25/64" / (mm) 86

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Details

• Manufacturer Part Number: 9222W
• Manufacturer: Wichard Marine
• Shipping Weight: 0.06 lb
• Box Dimensions (L x W x H): 6 x 2 x 1 in
• UPC: 3587790092226
