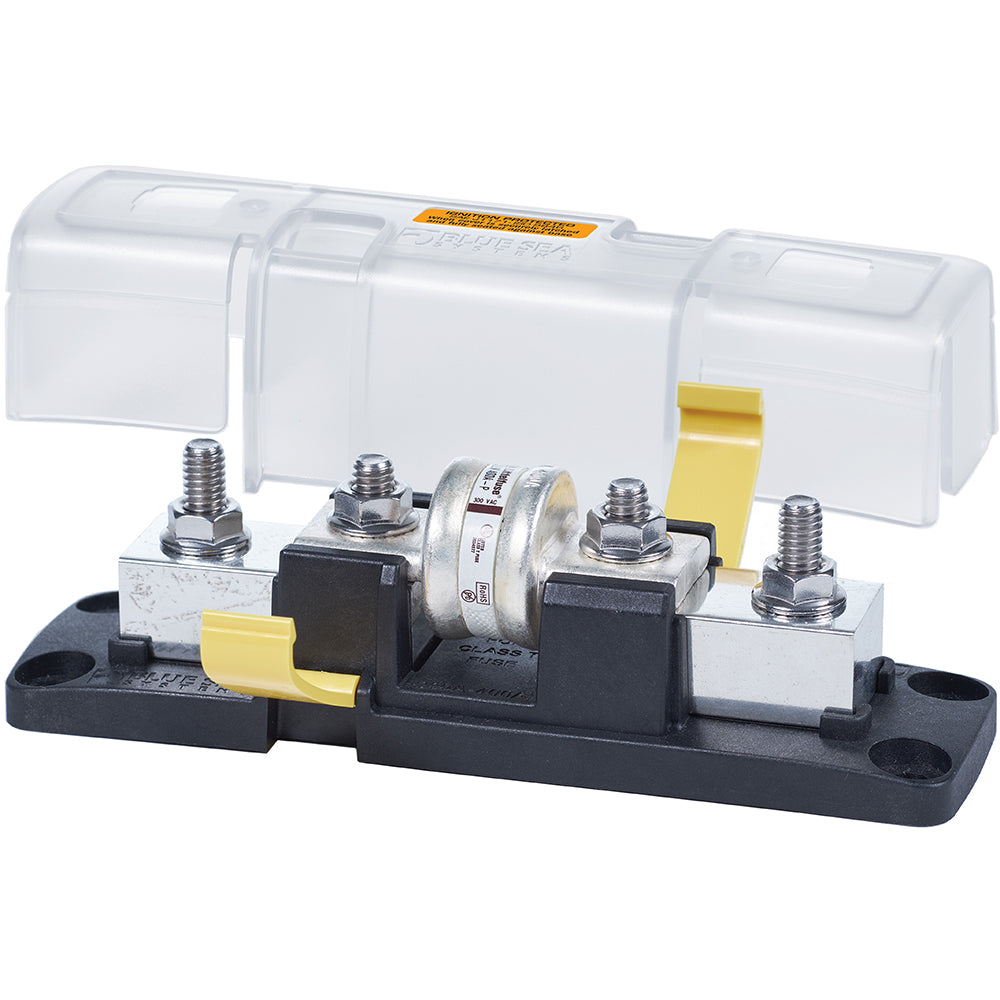

Blue Sea 5502100 Class T Fuse Block w/Insulating Cover - 225 to 400A

Class T Fuse Block with Insulating Cover - 225 to 400A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Technical Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 320A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 5/16"-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 5502100
• Manufacturer: Blue Sea Systems
• Fuse Type: Class T
• Type: Fuse Blocks
• Shipping Weight: 1.77 lb
• Box Dimensions (L x W x H): 9 x 7 x 3 in
• Country of Origin: United States
• UPC: 632085550219
