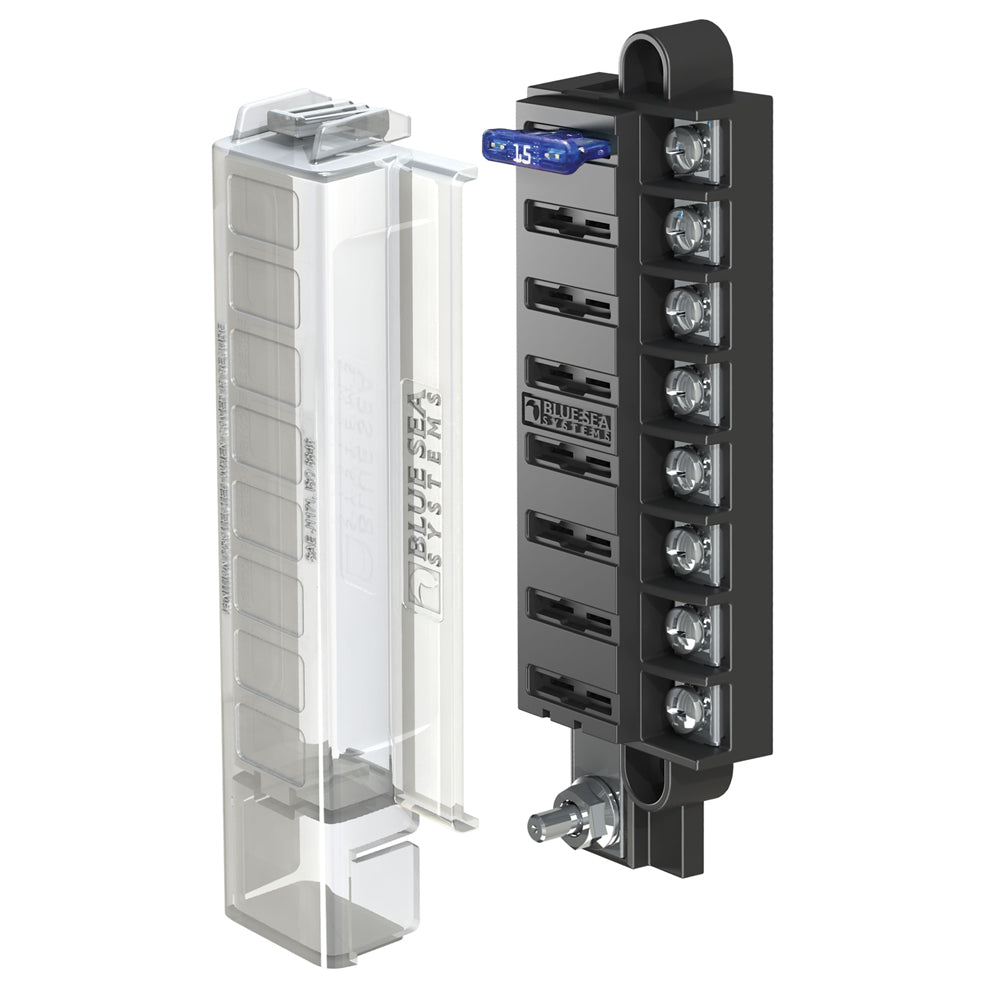

Blue Sea 5046 ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

ST Blade Compact Fuse Blocks - 8 Circuits w/Cover

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block
• Accepts ATO® and ATC® fast acting blade fuses
• Single side entry wiring
• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Small format standard and custom labels available

Specifications

• Circuits:8
• Maximum Amperage: 100A per block / 30A per circuit
• Maximum Voltage:32V DC
• Mounting: #8 Screw (M4)
• Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 5046
• Manufacturer: Blue Sea Systems
• Fuse Type: ATO/ATC
• Type: Fuse Blocks
• Shipping Weight: 0.39 lb
• Box Dimensions (L x W x H): 9 x 3 x 2 in
• Country of Origin: United States
• UPC: 632085050467
