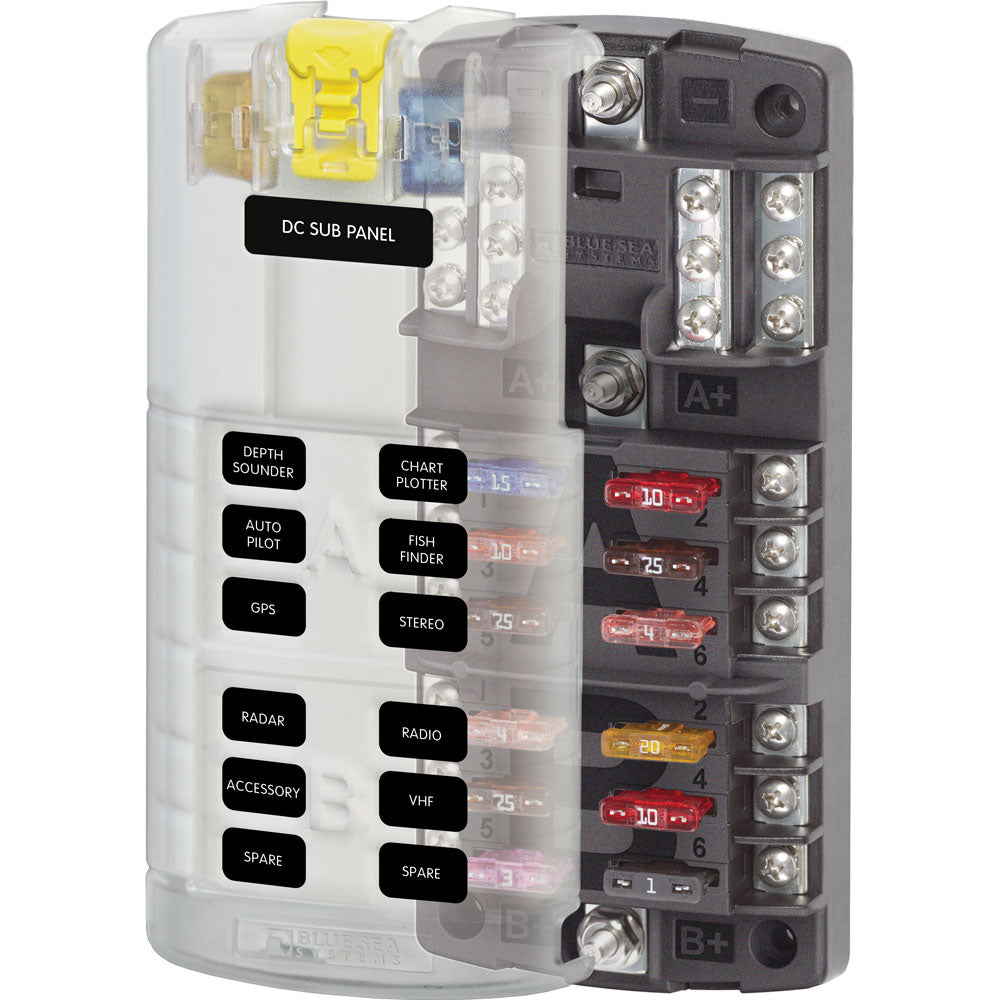

Blue Sea 5032 ST-Blade Split Bus Fuse Block

• Provides two isolated groups of six ATO/ATC circuits
• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
• Screw terminals for securing wires accept ring terminals
• One-piece stainless flange nuts ensure safe and secure connections
• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
• Easy to open, push button latch for easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuses sold separately

• Circuits: 12
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Mounting: #8 Screw (M4)
• Negative Bus: #10-32 Stud
• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 5032
• Manufacturer: Blue Sea Systems
• Fuse Type: ATO/ATC
• Type: Fuse Blocks
• Shipping Weight: 0.9 lb
• Box Dimensions (L x W x H): 10 x 6 x 2 in
• Country of Origin: United States
• UPC: 632085050320
