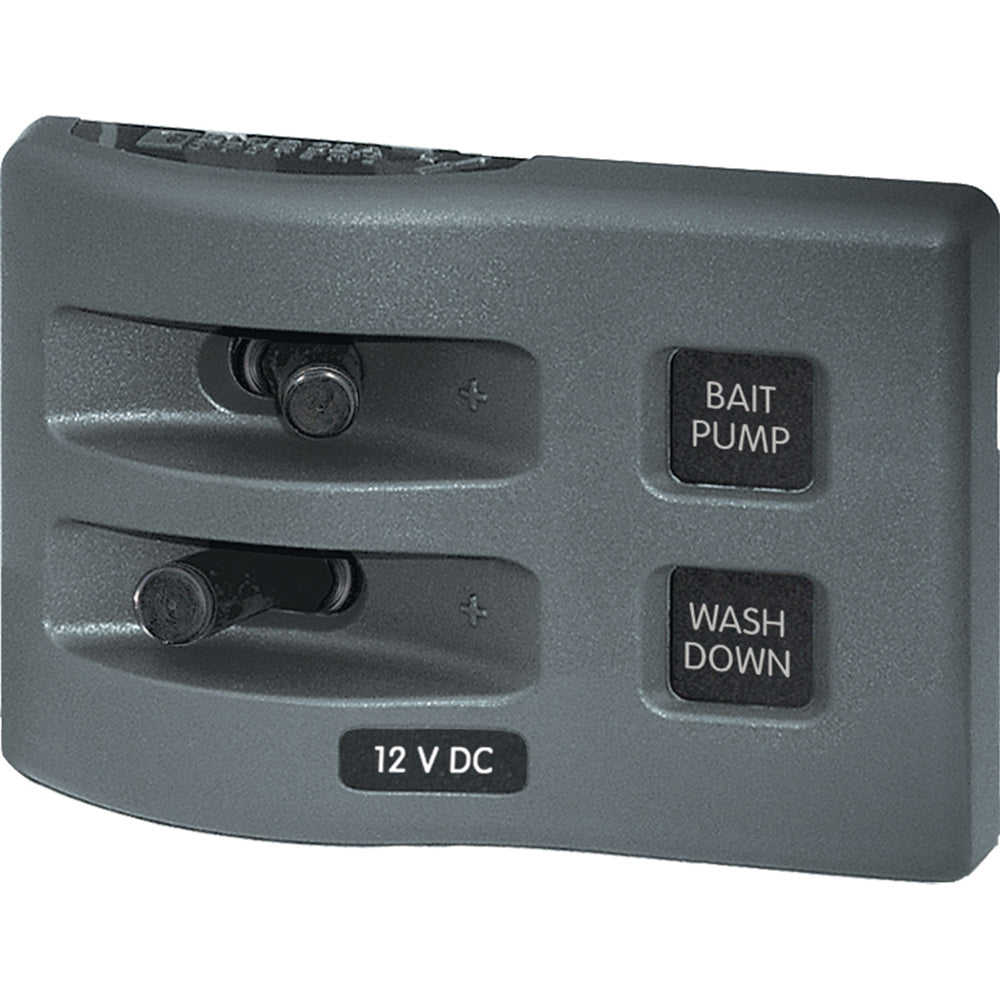

Blue Sea 4303 WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position

WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position

• Integrated switch guards reduce the risk of accidental switching
• Panels can be mounted in four different orientations
• Panel front rated IP67 when properly mounted with watertight mounting gasket
• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 2
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Material: Reinforced Polycarbonate
Height: 2.60"(66.04 mm)
Width : 3.88"(98.55 mm)
Depth: 2.50"(63.5 mm)
Weight: 0.52lb (0.24 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 4303
• Manufacturer: Blue Sea Systems
• Waterproof: Waterproof
• AC/DC: DC
• Max Breaker Quantity: 2
• Voltage: 12/24v
• Shipping Weight: 0.44 lb
• Box Dimensions (L x W x H): 6 x 6 x 4 in
• Country of Origin: United States
• UPC: 632085043032
