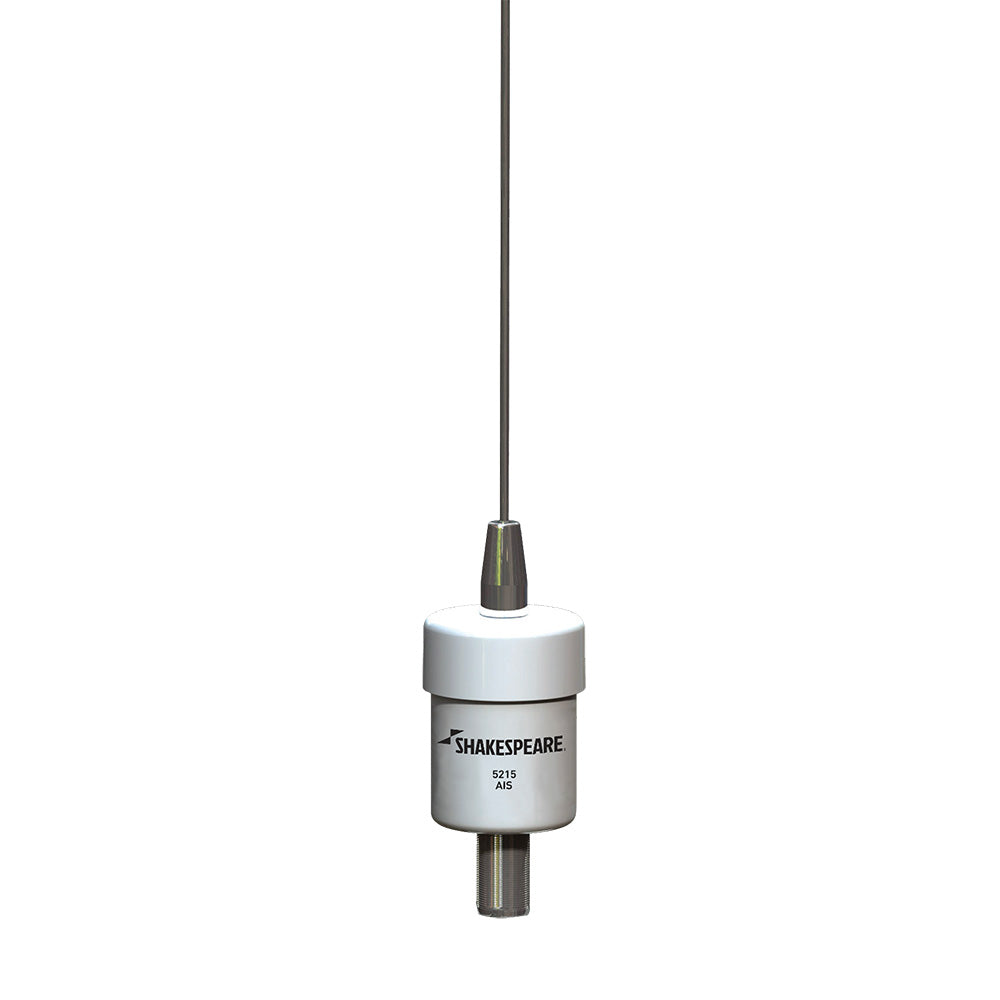

Shakespeare AIS 5215-AIS 36" Squatty Body® Antenna f/Sailboats

Shakespeare Squatty Body®
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

• Sealed, tin-plated copper wire coil
• Designed specifically for AIS transceivers
• SO-239 connector
• Stainless steel L-shaped bracket supplied for mounting
• One section
• For AIS applications

Best applications include: Sailboats

Shakespeare 5215-AIS Squatty Body® Specifications

• Band: VHF Marine Band
• Antenna Gain: 3dB
• Max. Input Power: 50 watts
• SWR: nominally 1.5:1 at 162 MHz
• Bandwidth: 7 MHz within 2.0:1 VSWR
• Ferrule: L-bracket and retaining nut, SO-239 connector
• Polarity: Vertical
• Impedance: 50 Ohms
• DC Ground: No DC Ground - The antenna will read open on continuity test.
• Shakespeare Limited Warranty: 2 years

Details

• Manufacturer Part Number: 5215-AIS
• Manufacturer: Shakespeare
• Antenna Band: AIS
• Length (Inches): 36"
• Shipping Weight: 2 lb
• Box Dimensions (L x W x H): 40 x 2 x 2 in
• Country of Origin: China
• UPC: 719441100810
