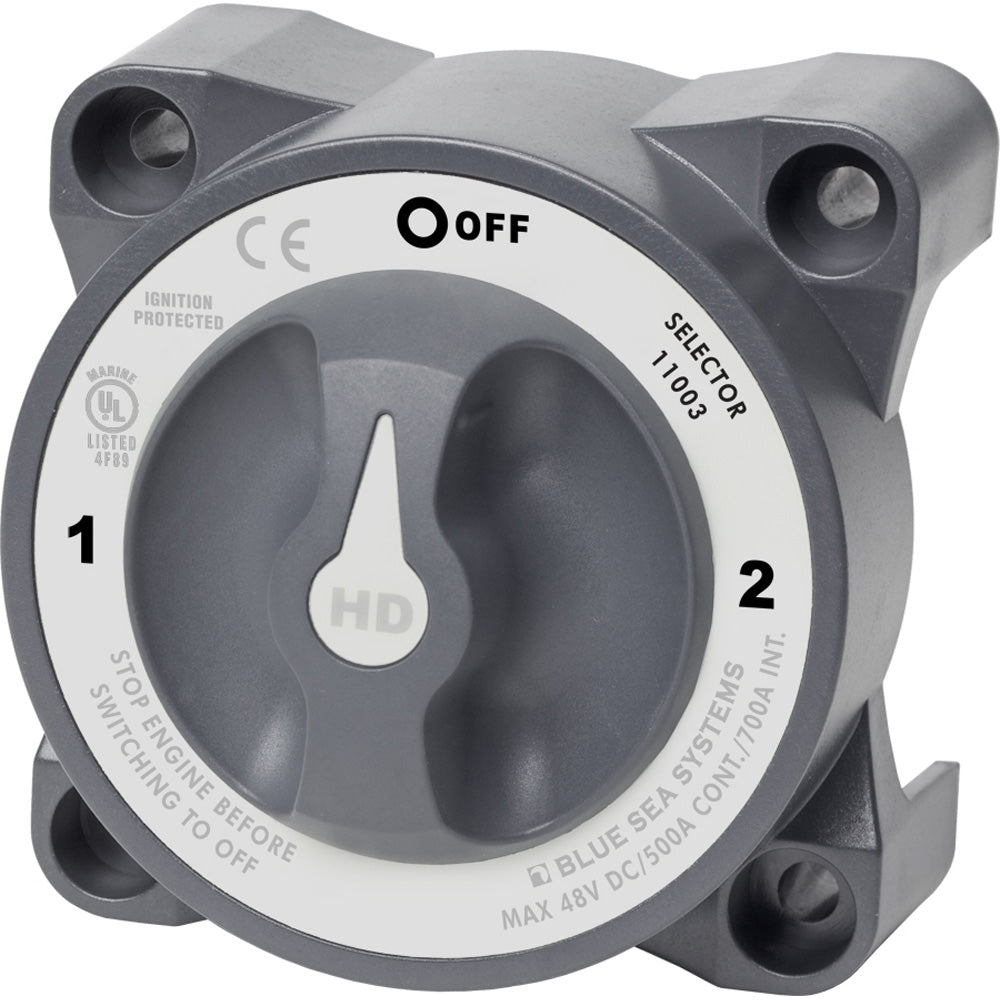

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect - 3-Position

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Ignition protected safe for installation aboard gasoline powered boats

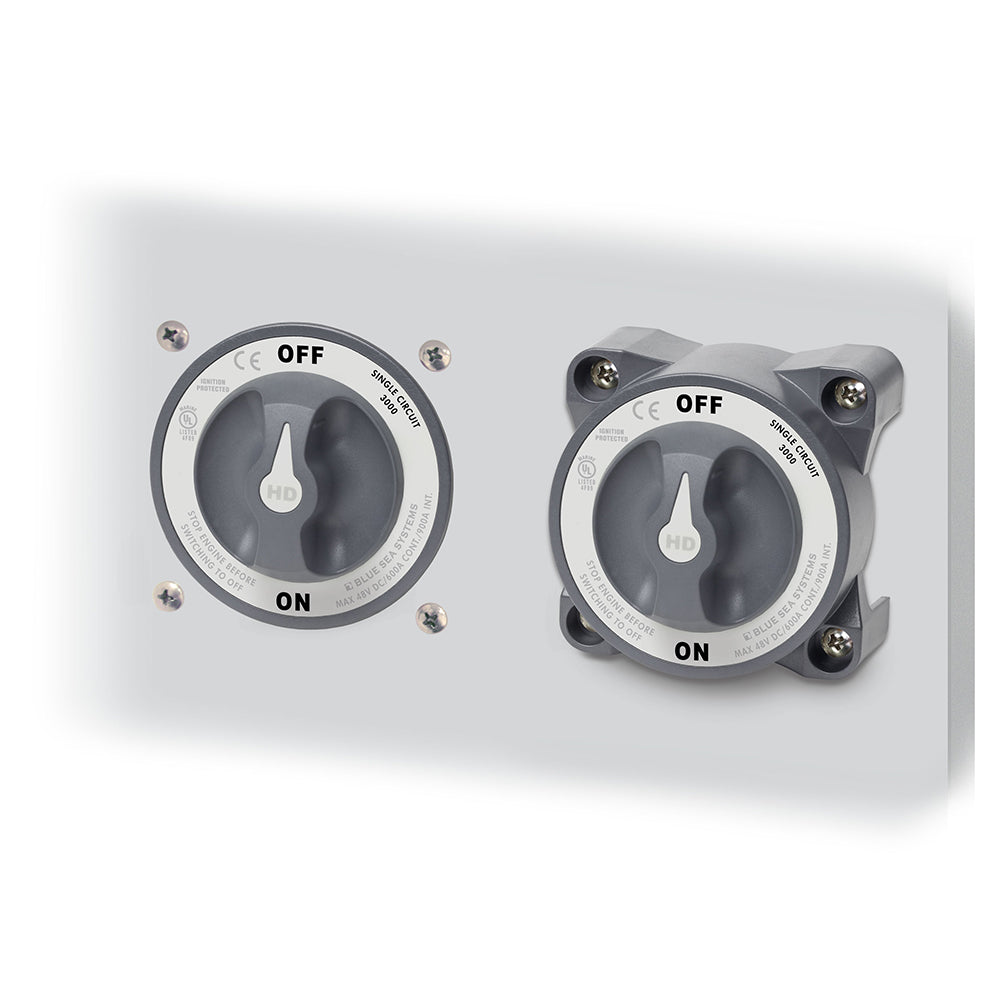

• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm) battery cables

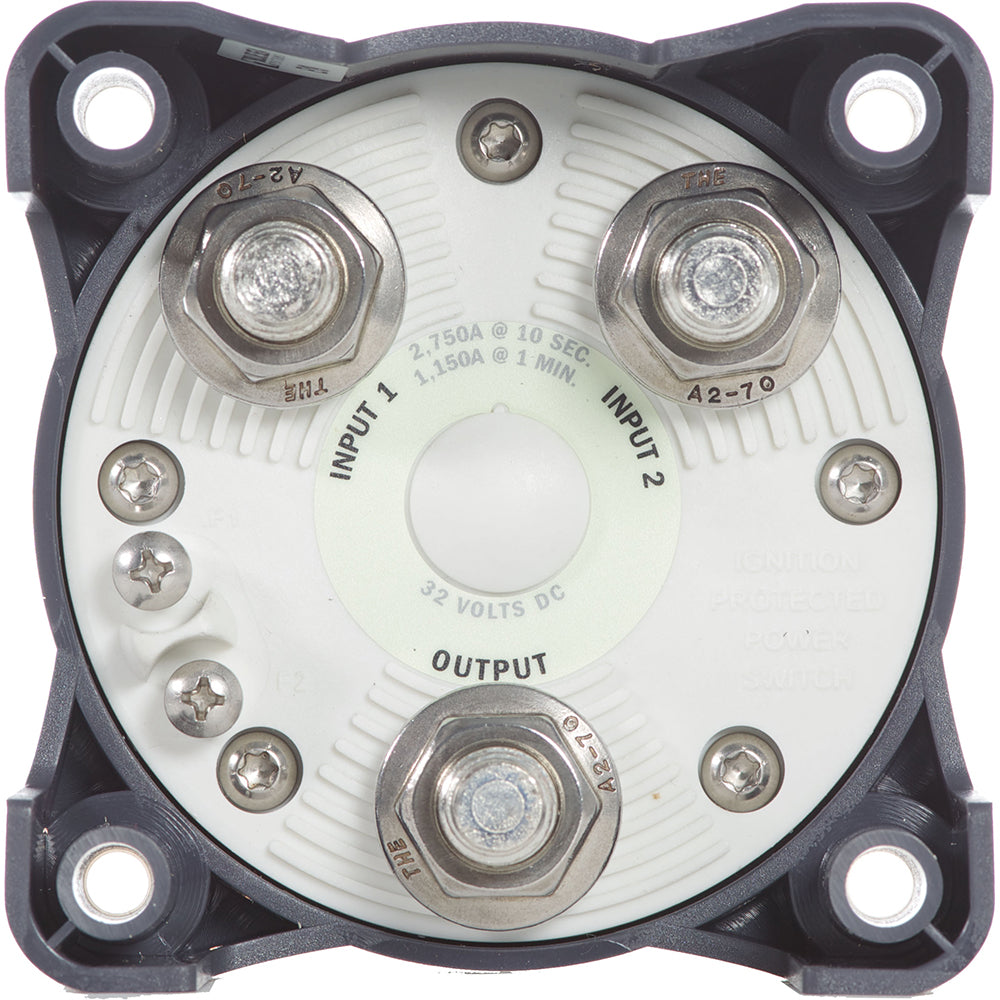

• M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2" and M12 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting

10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 11003
• Manufacturer: Blue Sea Systems
• AFD: Yes
• Positions: 3
• Shipping Weight: 1.3 lb
• Box Dimensions (L x W x H): 9 x 7 x 3 in
• Country of Origin: United States
• UPC: 632085110031
