Maretron

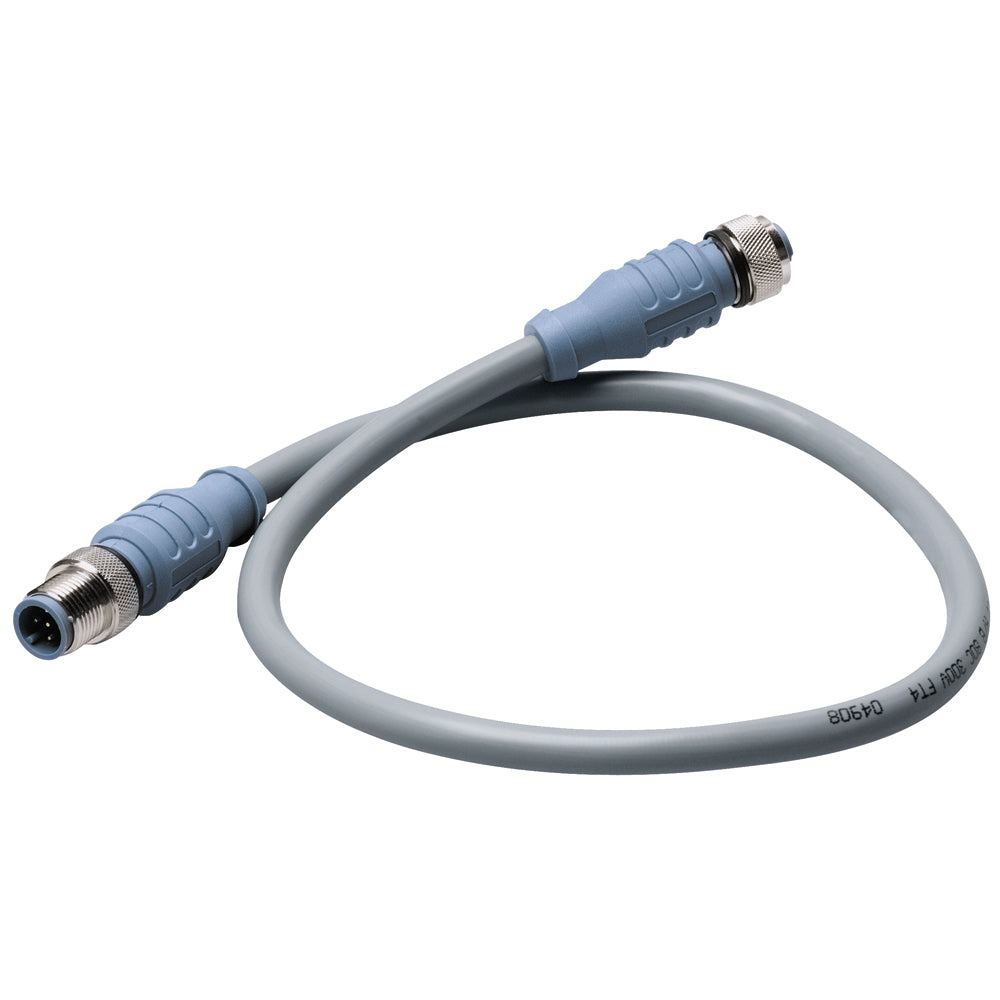

Maretron Micro Double-Ended Cordset - 6 Meter
Maretron Micro Double-Ended Cordset - 6 Meter
Regular price
$69.96 USD
Regular price
Sale price
$69.96 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Mechanical
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59"
Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V
Cable Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved
Electrical
Cable
Environmental
Approvals
AWM 80 deg C 300V
AWM I/II A/B 80C 300V FT4
Details
- Manufacturer Part Number: CM-CG1-CF-06.0
- Manufacturer: Maretron
- Data Interface: NMEA 2000
- Connection Gender: Male-Female
- Cable Length (Meters): 6m
- NMEA 2000 Connectors: Backbone/Drop Cables
- Shipping Weight: 0.91 lb
- Box Dimensions (L x W x H): 8 x 8 x 2 in
- Country of Origin: Mexico
- UPC: 873804001562
