Raymarine

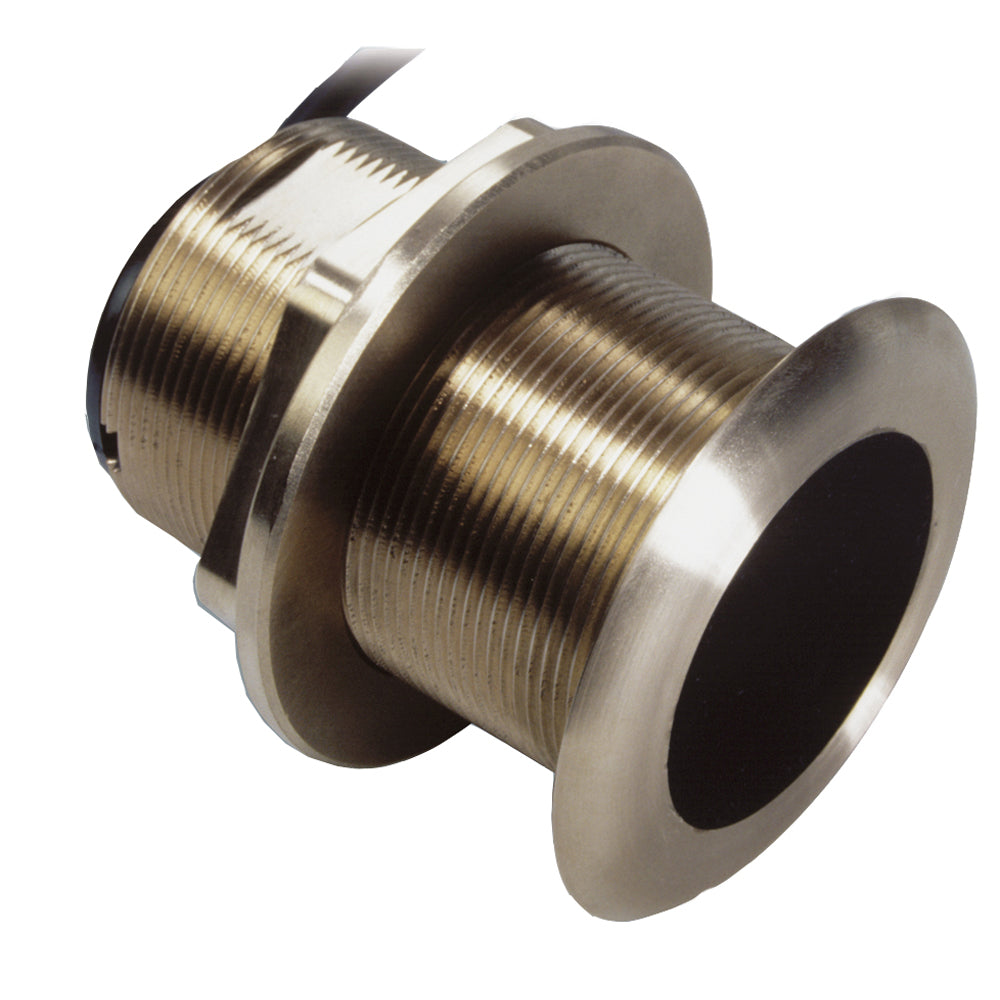

Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300
Raymarine B60-12, 12 Degree Tilted Element Transducer f/DSM250 / DSM30 / DSM300 / DSM300G / CP300
Regular price
$389.00 USD
Regular price
Sale price
$389.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
B60 Tilted Element™ 12°
12° titled version is designed for 8° - 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
12° titled version is designed for 8° - 15° deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
Features:
- Depth/Temp
- 50/200 kHz
- 600w RMS
- Mid-performance
- Bronze
Details
- Manufacturer Part Number: E66086
- Manufacturer: Raymarine
- Temperature: Yes
- Speed Included: No
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 33'
- Shipping Weight: 5 lb
- Box Dimensions (L x W x H): 11 x 8 x 4 in
- UPC: 723193660867
