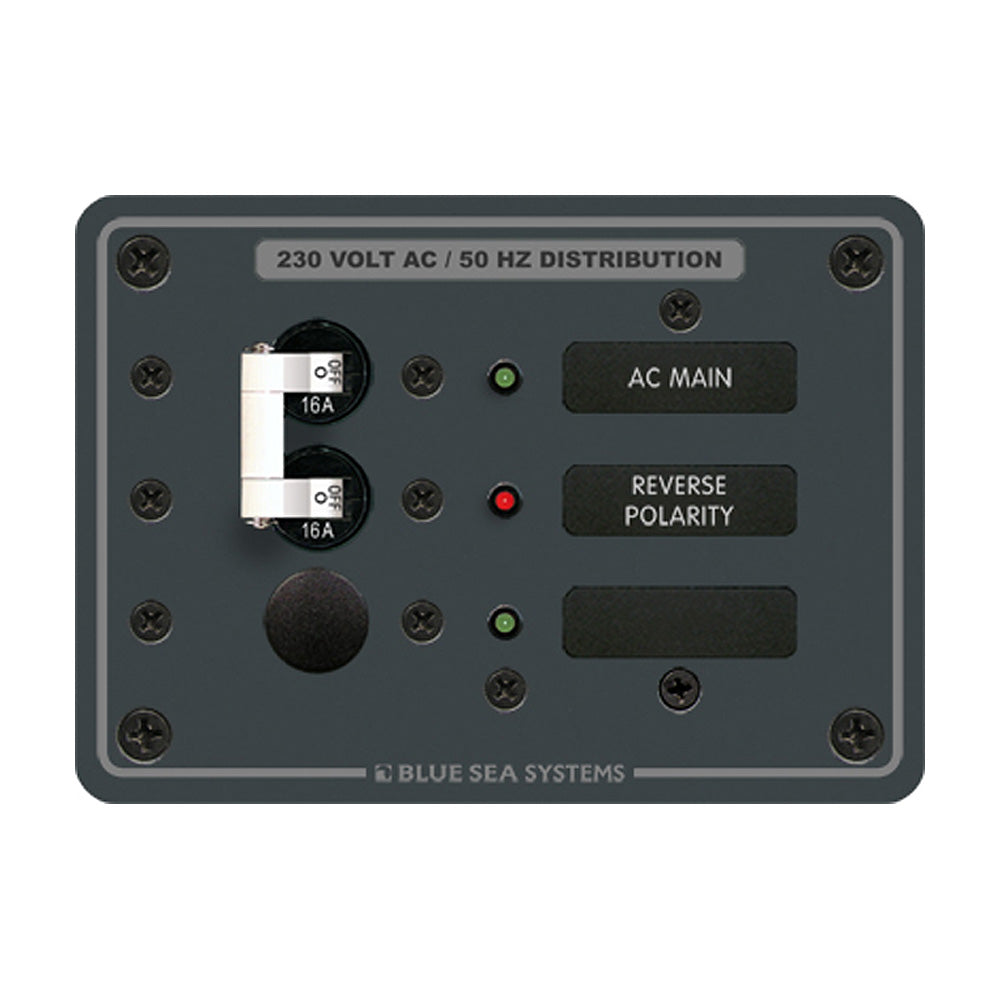

Blue Sea 8129 AC Main + Branch A-Series Toggle Circuit Breaker Panel (230V) - Main + 1 Position

• 230V
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions
• Maximum panel amperage - 50 Amperes
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8" aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels
• Over 500 individual Labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 8129
• Manufacturer: Blue Sea Systems
• Max Breaker Quantity: 1
• AC/DC: AC
• Voltage: 230v
• Shipping Weight: 1 lb
• Box Dimensions (L x W x H): 9 x 8 x 4 in
• Country of Origin: United States
• UPC: 632085081294
