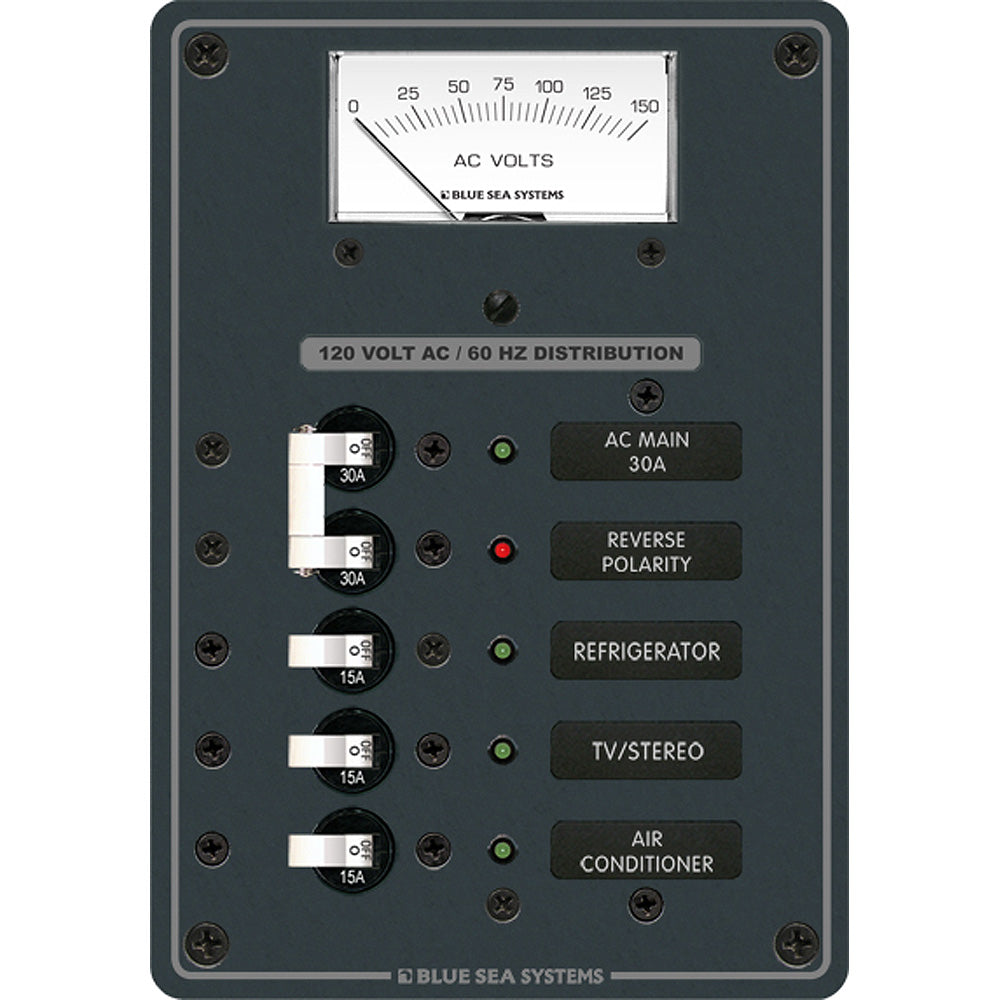

Blue Sea 8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches

8043 AC Main +3 Positions Toggle Circuit Breaker Panel - White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "ON" indicating LEDs installed in all circuit positions

Specifications:

• Positions: 3
• Nominal Voltage: 120v AC
• Height: 7.5"
• Width: 5.25"

Included:

• (1) 8031 Basic AC Panel Label Set - 30 Labels
• (4) 8034 LED - 120v AC Green
• (1) 8066 LED - 120v AC Red
• (3) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
• (1) 9353 AC Voltmeter - 0 to 150v AC (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Details

• Manufacturer Part Number: 8043
• Manufacturer: Blue Sea Systems
• AC/DC: AC
• Max Breaker Quantity: 3
• Voltage: 120v
• Shipping Weight: 2.06 lb
• Box Dimensions (L x W x H): 12 x 7 x 5 in
• Country of Origin: United States
• UPC: 632085080433
