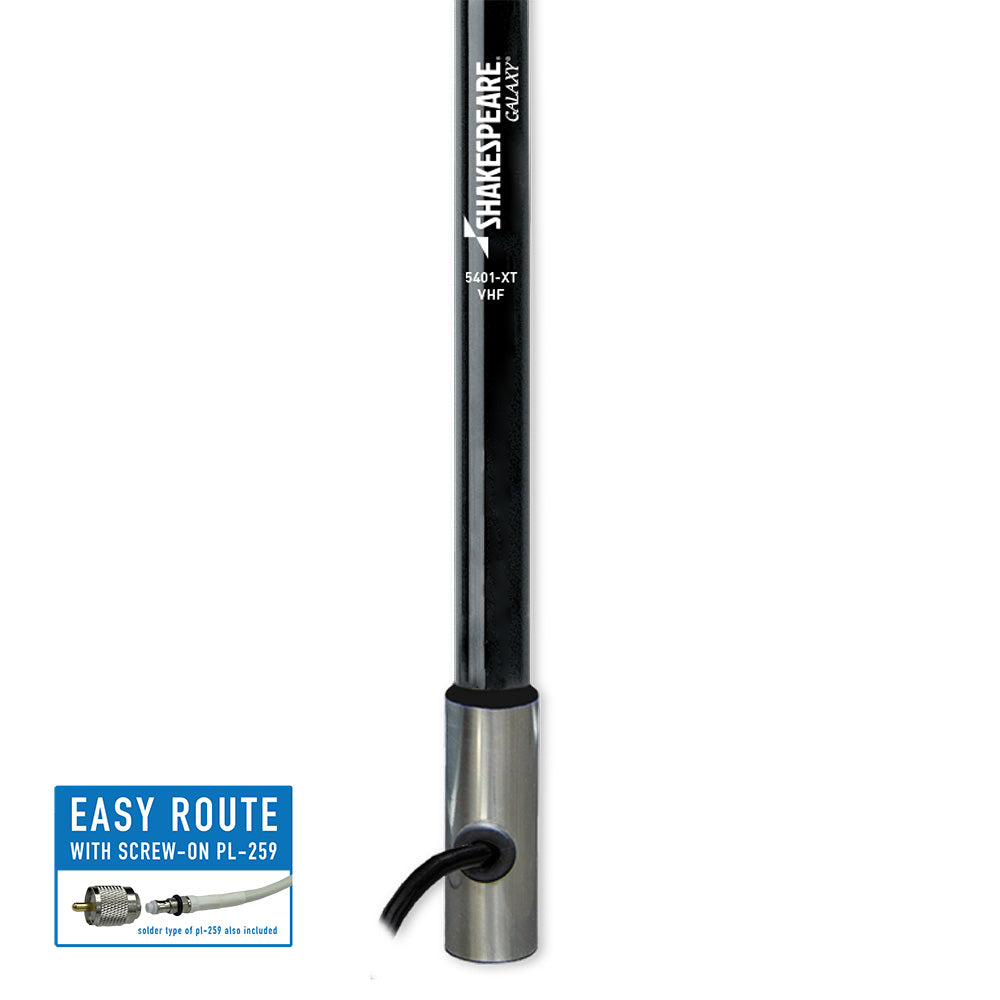

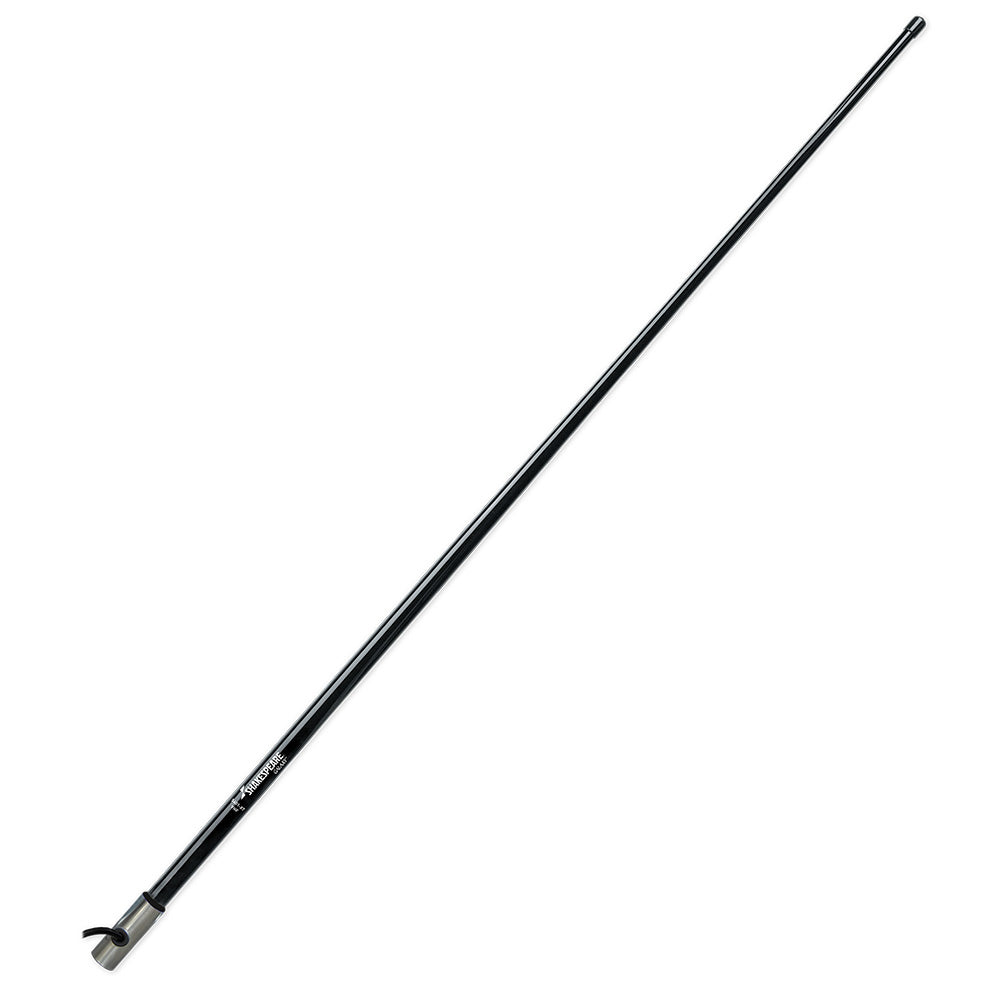

Shakespeare 5401-XT Galaxy 4' Antenna - 3dB Gain

5401-XT Galaxy 4' Antenna - 3dB Gain

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

• Center-fed 1/2 wave coaxial sleeve
• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 5 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Gain: 3 dB
• Max Input (Watts): 50 watts
• Height (feet): 4

Details

• Manufacturer Part Number: 5401-XT
• Manufacturer: Shakespeare
• Antenna Band: VHF
• Color: Black
• Construction: Fiberglass
• Ferrule Type: Stainless Steel
• Length (Inches): 48"
• Shipping Weight: 3.1 lb
• Box Dimensions (L x W x H): 55 x 3 x 3 in
• Country of Origin: China
• UPC: 719441100612
