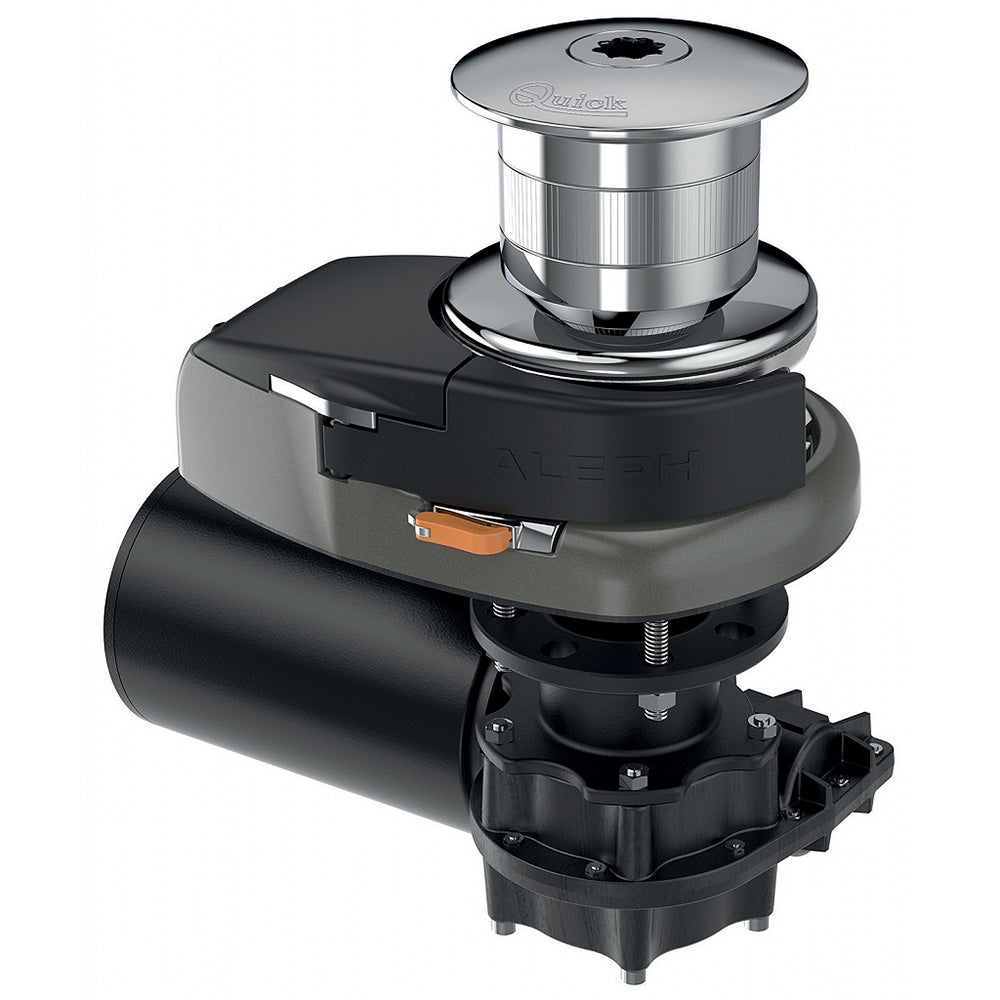

Aleph AL3 1012D Windlass - 12V, 1000W, 10MM Gypsy to 5/8" Rope with Drum

The AL3 vertical windlass features a hard-anodized aluminum construction, an IP67 watertight motor, an inspection lid, and an emergency manual lift system, making it suitable for boats with limited deck space. The unit includes a gearbox, solenoid, clutch handle, and mounting hardware.

Features:

• For 33-46FT Boats
• Vertical windlasses
• 10mm - 3/8" gypsy
• Requires 5/8" three-strand polyester rope
• Includes T6315-12 Solenoid
• Base in anodized aluminum with hard oxide
• With drum
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Manual Free-Fall system
• Emergency manual lift system
• Supplied with pressure lever
• Inspection lid
• IP67 watertight motor
• Technopolymer gearbox (700W / 1000W)

Specifications:

• Motor power - 1000 W
• Motor supply voltage - 12 V
• Maximum pull - 1000 Kg / 2204 lb
• Maximum working load - 370 kg/816 lb
• Working load - 120 kg/264 lb
• Current absorption @ working load - 140 A
• Maximum chain speed - 39,6 m/min 129.2 ft/min
• Maximum chain speed @ working load - 20,4 m/min 66.9 ft/min
• Weight -19,7 Kg / 43 lb

Details

• Manufacturer Part Number: FSAL1012D010B00
• Manufacturer: Quick
• Shipping Weight: 46 lb
• Box Dimensions (L x W x H): 17 x 16 x 11 in
• UPC: 8057090231762
