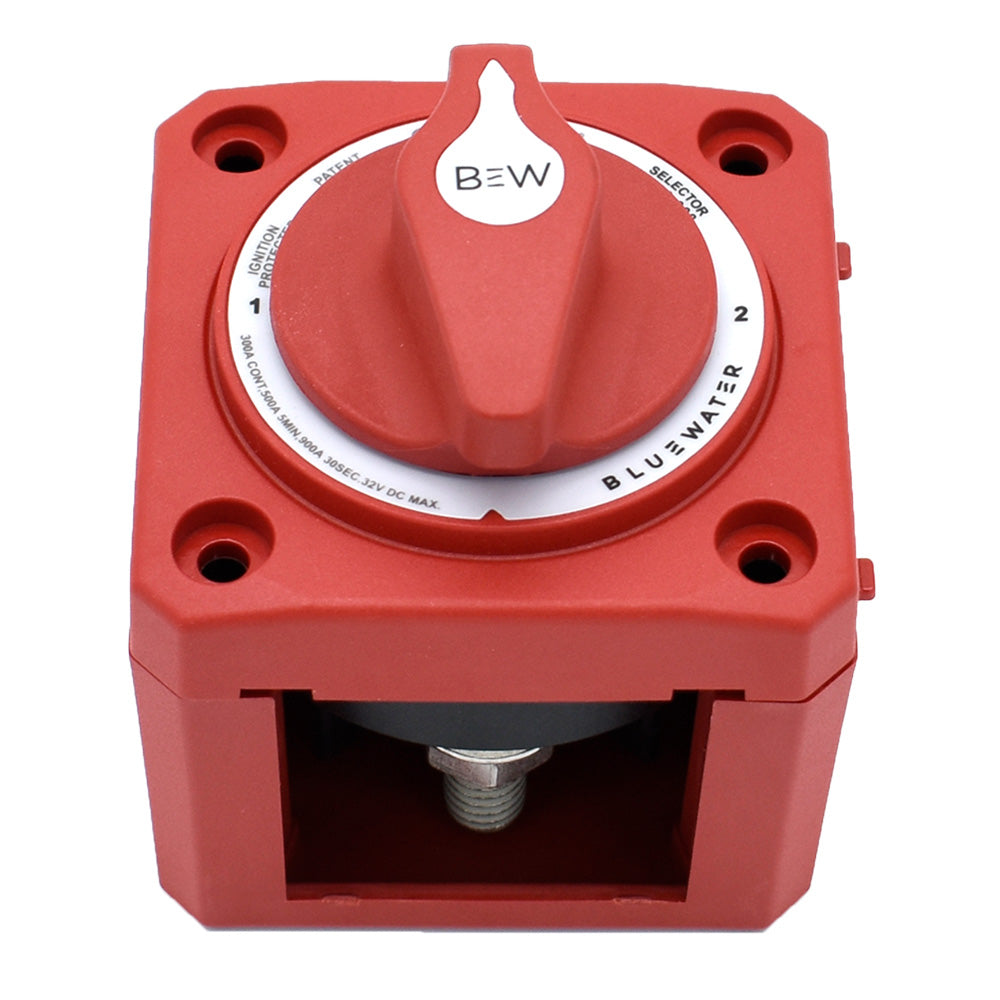

Bluewater OFF/1/2 Battery Switch - Surface Mount - Red

OFF/1/2 Battery Switch - Surface Mount - Red

This 1/2/Off switch offers seamless selection between two power sources, with an Off position for isolation. It’s a reliable solution for switching between primary and secondary batteries in compact or mobile applications, such as boats, RVs, or service vehicles.

Ignition-protected and safe for use aboard gasoline-powered boats, the 1/2/Off switch is built for flexibility with a case design that supports surface, front panel, or rear panel mounting.

To ensure lasting performance, the switch features 3/8″-16 tin-plated copper studs for strong conductivity and corrosion resistance, compatible with both 3/8″ and M10 ring terminals. A 7/8″ stud length accommodates multiple cable terminals when needed.

Constructed from marine-grade, non-corrosive metals and a reinforced polycarbonate housing, it’s made to endure harsh environments. Tactile knob textures allow you to identify the position by feel, and both international ON/OFF legends and an icon label set are included for easy circuit labeling.

Specifications:

• Continuous Rating: 300 Amps DC
• Intermittent Rating: 500 Amps DC (5 min)
• Cranking Rating: 900 Amps DC (30 sec)
• Max Voltage: 32VDC
• Cable Size: 4/0 AWG

Details

• Manufacturer Part Number: 9800-008-11
• Manufacturer: Bluewater
• Continuous Amperage: 300
• Positions: 3
• Shipping Weight: 0.83 lb
• Box Dimensions (L x W x H): 6 x 3 x 3 in
• UPC: 810196331198
