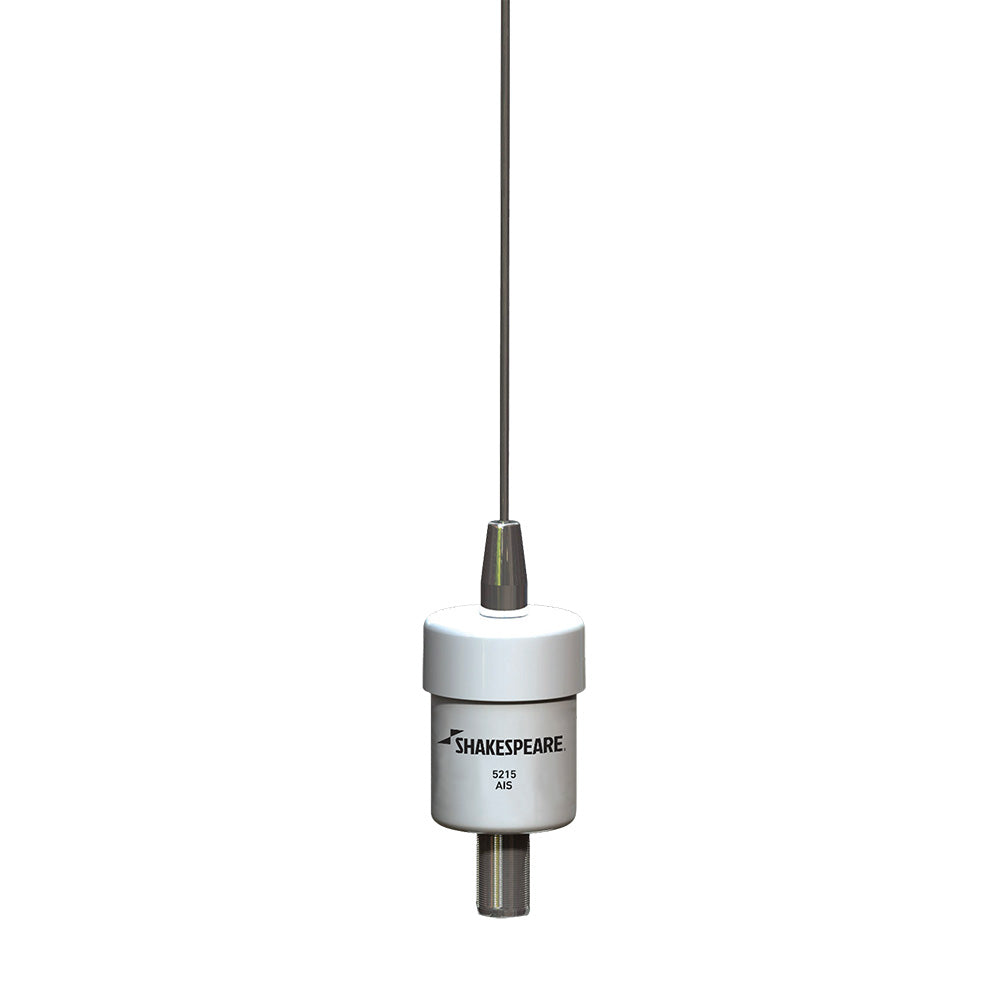

Shakespeare 5215 3' Stainless Steel Whip Antenna

Shakespeare Style 5215 SQUATTY BODY® VHF Marine
36" LENGTH, 3dB

END-FED 1/2-WAVE STAINLESS STEEL WHIP

A favorite with Sailboat owners, this lightweight, low profile, stainless steel antenna is specially designed for masthead mounting.

• Hermetically sealed, tin-plated copper wire coil
• Stainless steel body and whip
• SO-239 connector - cable sold separately
• Mount: Stainless steel "L" bracket supplied, for mast mounting
• One section
• Shakespeare Limited Warranty: 2 years

technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	7 MHz
SWR:	1.5:1 @ 156.8 MHz
Impedance:	(Ohms): 50
Gain:	3 dB
Max Input (Watts):	50
DC Ground:	NO
Termination:	SO-239 connector
Height (feet):	3
Polarization:	Vertical
Radiation pattern:	Omni-directional

Details

• Manufacturer Part Number: 5215
• Manufacturer: Shakespeare
• Antenna Band: VHF
• Color: Stainless
• Construction: Stainless Steel
• Length (Inches): 36"
• Shipping Weight: 1.5 lb
• Box Dimensions (L x W x H): 40 x 3 x 3 in
• Country of Origin: China
• UPC: 719441100148
