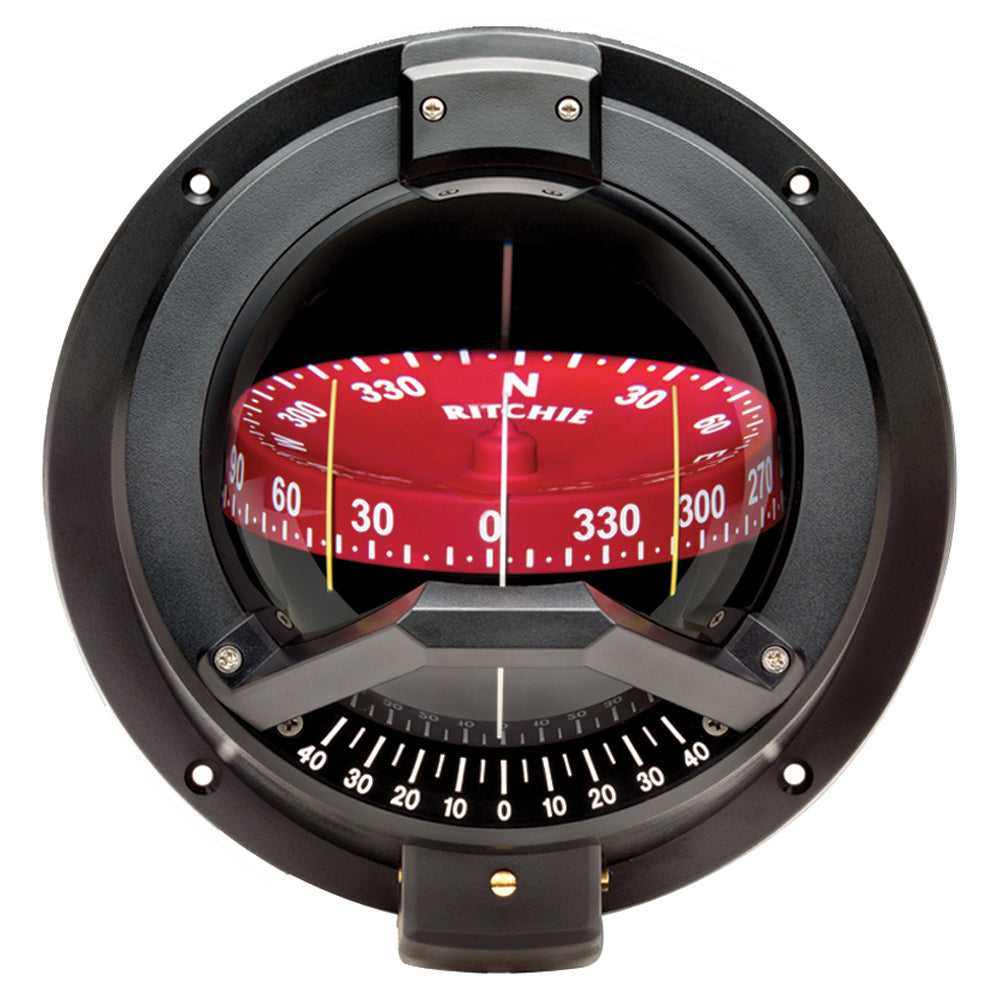

Ritchie BN-202 Navigator Compass - Bulkhead Mount - Black

Navigator Compass

Features:

• 4 1/2″ (115 mm) Ritchie CombiDial and Built-in Inclinometer
• When mounting this Compass to a bulkhead that is NOT perpendicular (90° angle) to the center-line of the boat and/or NOT vertical (90° angle) to the waterline of the boat (boat on level keel), a fairing block MUST be used to make the compass so.

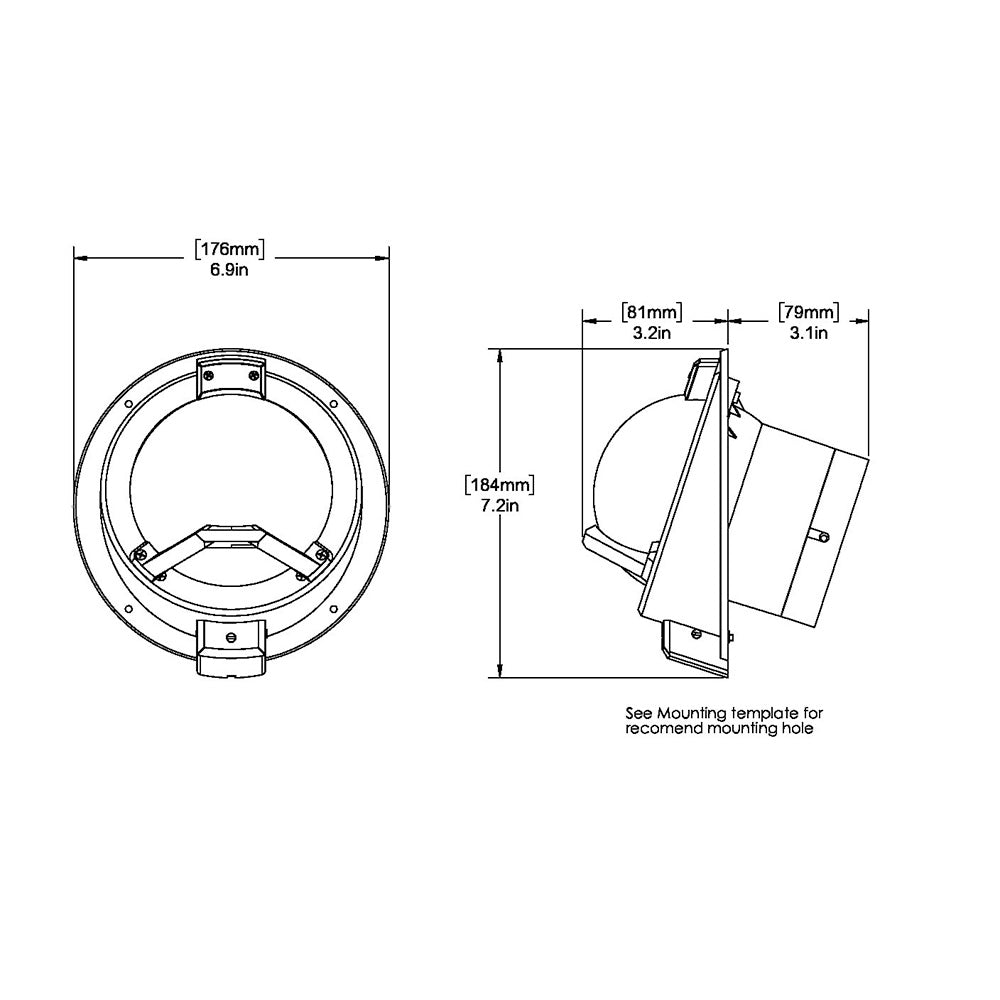

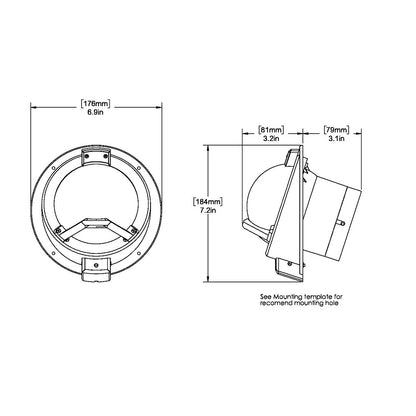

• Easily Installed, Fits 5.75″ (146 mm) Mounting Hole
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Fiberglass Reinforced Bowl
• 45 degree Lubber Lines
• Exclusive Built-in 12v Amber LED Lighting
• Built-in Compensators to Easily Adjust for Deviation
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2 lbs 5 oz (1.05 kg)

Notes:

12v lighting standard - 24 & 32v lighting options are available.

Details

• Manufacturer Part Number: BN-202
• Manufacturer: Ritchie
• Mounting Style: Bulkhead
• Lubber Lines: Yes
• Read: Both
• Backlight: Yes
• Shipping Weight: 3.13 lb
• Box Dimensions (L x W x H): 8 x 8 x 7 in
• Country of Origin: United States
• UPC: 010342150301
